In today’s interconnected world, the reliability and safety of software and hardware systems are paramount. From autonomous vehicles to medical devices and critical infrastructure, a single flaw can have catastrophic consequences. This is where
Model Checking comes in: a powerful set of techniques designed to systematically verify the correctness of systems, ensuring they behave exactly as intended, every single time.
This blog post marks the beginning of our comprehensive series on Model Checking. We’ll embark on a journey from foundational concepts to practical applications, equipping you with the knowledge to understand and implement these vital verification methods. In this post, we’ll lay the groundwork by exploring the core theoretical pillars that underpin model checking: the principles of logic, formal verification and automata theory. Get ready to master how we can build truly robust and hazard-free systems!
1. Logic
Logic is the field of mathematics responsible for studying
Boolean expressions, i.e., expressions which can either be true or false. Simple examples are “the weather is hot” and “I love you”. Although studying those sorts of phrases is not optimal for mathematicians, logic is still one of the core branches and is very widely used in different engineering fields, especially electrical and computer engineering, but also in computer science.
One differs mainly between
propositional logic, which consists of the known Boolean operators (especially AND, OR and NOT) and of Boolean variables called
propositions. An example of a propositional logical formula is:
\[ (p \text{ OR } (\text{NOT } q)) \text{ AND } p. \]
The second important type of logic is
predicate logic. This is widely seen as the general version of propositional logic, where the variables are not necessarily Booleans, but can be of any sort. In addition, we have, other than the Boolean operands, the quantifiers \( \forall \) (forall) and \( \exists\) (there exists). Lemmas and axioms in mathematics are mostly written in predicate logic. For example, we can define a sort called
Group, a constant \( e \) of the sort Group, an operation \(*\), and then use the Group Axioms to define the relations between elements of the Group:
- \( \forall x. \exists y. \space \space x * y = e \)
- \( \forall x. \forall y. \forall z. \space \space x * (y * z) = (x * y) * z \)
- \(\forall x. \space \space x * e = x \)
2. Formal Verification
Given a formula in propositional logic, it is generally easy to prove or disprove its validity using a set of rules.
For predicate logic, this gets harder as one has to define a set of
axioms, which in many cases can contradict each other, leading to all the rules to be false. For axioms that do not contradict each other (called
consistent), one can prove, with enough knowledge, if a formula is true.
One can extrapolate the
formal verification to programs, where one can study a program’s properties and its states. This includes the values of some of its variables, the
termination of the program and the
correctness of a returned value. This enriches the propositional logic by other operands, such as the
diamond operator \(\langle.\rangle\), which tells for a program \(p\) and a formula \(\phi\):
\[ \langle p \rangle \phi \text{ is true}\] \[\text{ if and only if} \] \[ p \text{ always terminates and } \phi \text{ holds after the program } p \text{ terminates} \]
3. Model Checking
Model Checking is the study of a modeled system for correctness and safety constraints. In many safety-critical systems (aircrafts, robots, railway crossings…), modeling the system and proving its safety criteria always hold is a critical step, because:
-
- Testing the system itself instead of a model has extremely high costs. Imagine having to test a railway crossing by driving a train and cars in different situations, each with the possibility to lead to a collision.
- Testing the system a few (or even many) times cannot be considered safe, as long as there is no warranty that the model cannot lead to an issue in a rare case that only appears under very specific conditions (especially if there are parallel tasks involved).
This is why the main role of model checking is ensuring a
hazard-free system in all possible cases.
For this, model checking defines two other types of logic to define the changes happening inside a model at different steps. As computers only handle discrete values and structures and cannot work with continuous values (like real numbers), model checking runs on
discretized times. The two logics are called
Linear Time Logic and
Computation Tree Logic and will be discussed in detail in the next blogs of this model checking series.
4. Automata and Languages
In computer science, we define an
alphabet as a finite set of characters, a
word as a string composed of these characters, and a
language as a set of such words.
For example:
- \(A = \{a, b\}\) is an alphabet.
- “aab”, “bb”, “a” and the empty word “” are all words over \(A\).
- \(L = \{\)”aab”, “bba”, “a”, “”\( \}\) and \(L’ = \{w \mid w \text{ word over } A \text{ that starts with an } a\}\) are languages over \(A\).
Deterministic Finite Automata (DFAs)
One of the main cores of theoretical computer science are
automata, which can be used in various use cases, including
pattern matching (this is the case with regular expressions, for example, where we only want to validate strings having a special form),
compiler building (where we want to build a syntax tree from a given code to generate its machine code version) as well as model checking. For the sake of simplicity, we define in this blog
Deterministic Finite Automata (DFAs) only. These are
directed graphs, where the nodes are called
states and the edges are called
transitions. Each transition is annotated with a letter, and some of the states are marked and in that case they are called
final (or accepting) states. Each DFA also has a unique
initial state, which is marked by an ingoing transition.
A DFA can accept or reject a word by reading it letter by letter, and following its path on the directed graph. If we land after reading all the letters on an accepting state, then we accept the word, otherwise, we reject it.

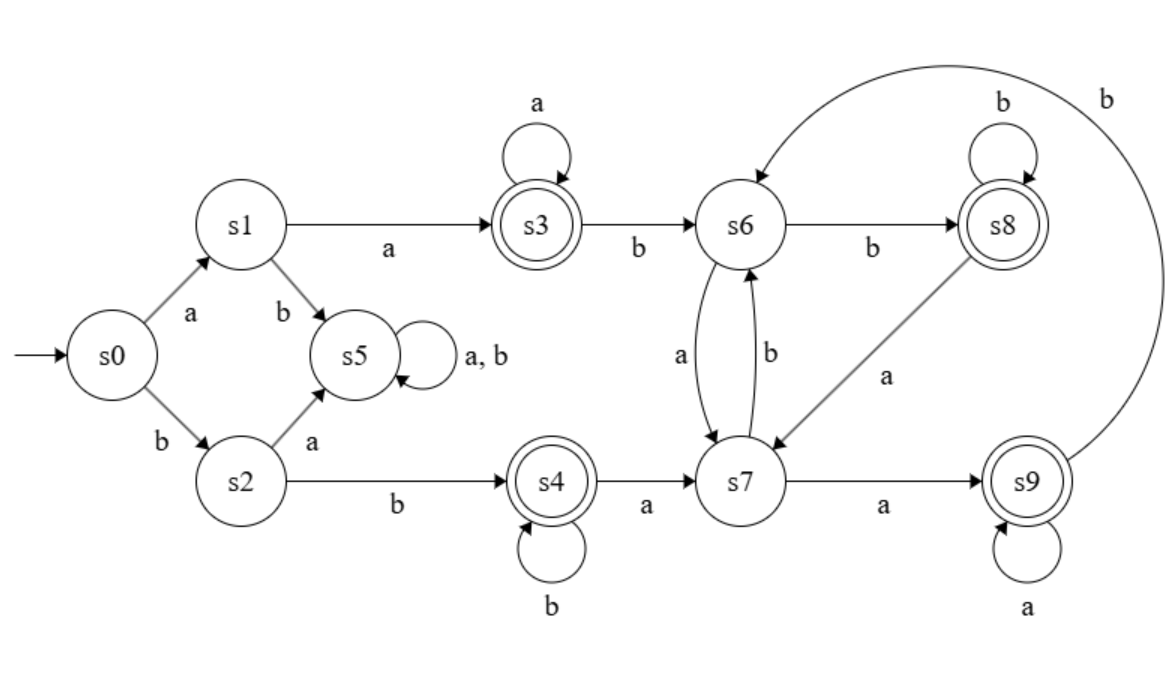

For instance, given the following DFA:

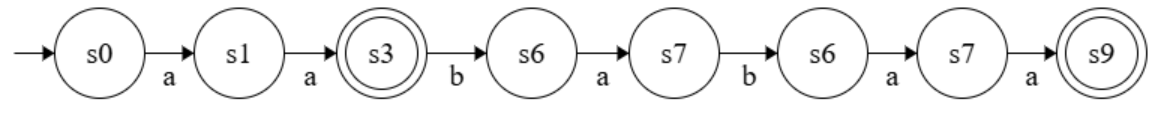

It accepts the word “aababaa” because we land on the accepting state s9 after reading the word:

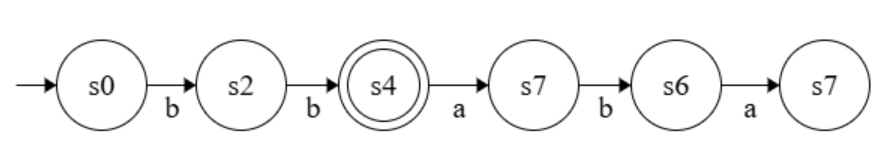

However, it does not accept “bbaba” because we land on the non-accepting state s7 after reading the word:
From that, we can see that every DFA accepts only some set of words, a.k.a. accepts some language. For the previous example, the DFA accepts the language of words starting with a doubled letter and ending with a doubled letter.
5. Further Reading and References
- Clarke, E.M., Grumberg, O., & Peled, D. (1999). Model Checking. The MIT Press.
- Huth, M., & Ryan, M. (2004). Logic in Computer Science: Modelling and Reasoning about Systems (2nd ed.). Cambridge University Press.
- Hopcroft, J.E., Motwani, R., & Ullman, J.D. (2006). Introduction to Automata Theory, Languages, and Computation (3rd ed.). Pearson Education.
- Automata made using: https://madebyevan.com/fsm/
